RM for spectrometry – set of low alloy steels
Recertified to make the former QCM fully compliant with the ISO Guide 35 definition of Reference
Material – with the values confirmed and their uncertainties assessed.
Intended for calibration and the control of matrix-match and of the state of statistic regulation in the
automated spectrometry of low alloy steel from a plane of solid sample. They may not substitute CRM
in establishing traceability of the results. A single analysis area of at least 4 mm in diameter defines
the minimum sample intake.

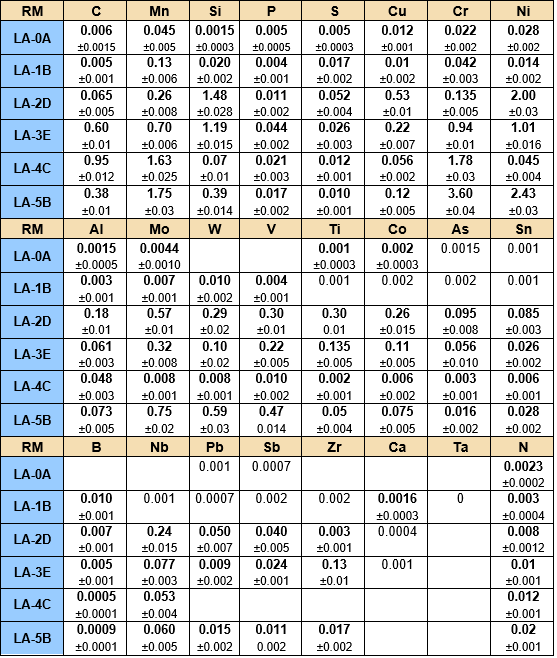

RM LA 0 – LA 5
– sample of 37 mm in diameter, height 25 mm or an agreed option

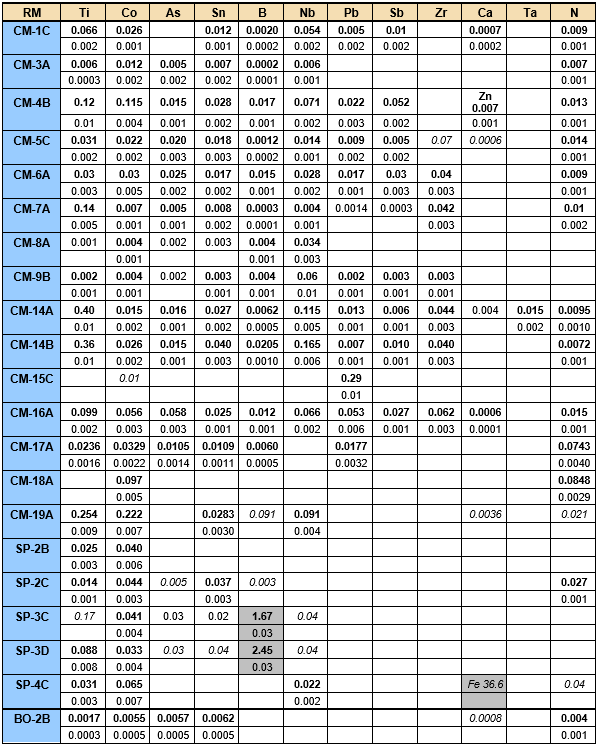

RM CM (1C, 3A, 4B, 5C, 6A, 7A, 8A, 9B, 14A, 14B, 15C, 16A) and SP-2B
– sample of 35 – 43 mm in diameter. height 25 mm or an agreed option
RM of silicon steel SST – (1A, 2A, 3A, 4A)
- – sample of 37 mm in diameter. Height 25 mm or an agreed option, steel chips on request.
